PVC-O

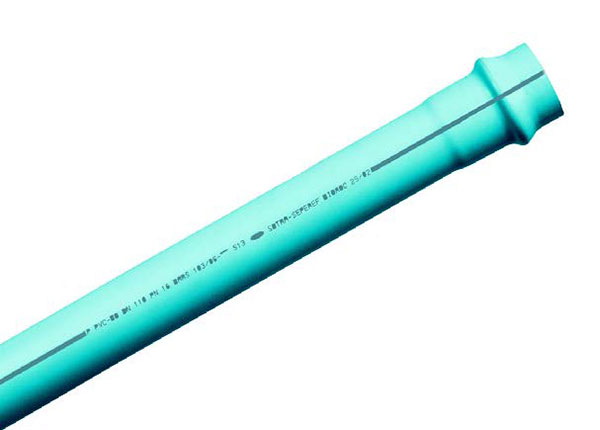

PVC-O Drinking Water Pipe

Molecular orientated PVC (PVC-O) is a high performance, cost effective and environmentally friendly product for the distribution of drinking (potable) water. The PVC-O pipe is jointed with a mechanical rubber ring joint and complimented with a range of PVC-O and ductile iron fittings for use with PVC-O pipe. The pipe is coloured blue and rated to 16 bar working pressure.

The process in which PVC-O pipe is made involves re-orientating the molecules of PVC-u material to improve physical properties. This combination gives the best weight vs. performance characteristics in the industry for a product that will last over 50 years.

Features & Benefits
  • Non corrosive
  • Lightweight and easy to handle - reduced installation costs
  • Extremely tough and resilient
  • Long asset life
  • Cleanliness – commissioning time reduced
  • Tried and tested – proven reliability
  • Resistant to fast fracture
  • Low frictional resistance
  • 16 bar pressure rating – 25bar also available
  • Suitable for narrow trenching – up to 30% saving on open cut trenching methods
Applications
  • Drinking Water (potable)
  • Suitable for narrow trenching
PVC-O Metric System - Ring Seal Mechanical Joint
Internal Dia (mm) External Dia (mm) Code
103.8 110 082336405
133.2 140 082384536
151.2 160 082336408
189.0 200 082336409
237.8 250 082384539
299.6 315 082384540
